Pipe and drape uses a limited number of components that are connected together to build up wedding, event, Trade show stands in various sizes and also does not require the use of any tools. The basic components are bases, uprights, Crossbar and draperies.

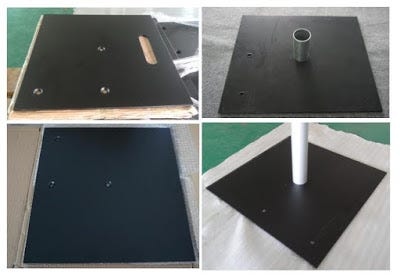

1.Base Plate
Foundation for the pipe and drape system. pipe and drape systems starts with steel bases assembly. Bases are offered in various sizes and weights and selected based on the weight and heights of drapes to be hung.
Base plate sizes
18" x 18" x 3/16" Base plate
24" x 24" x 3/16" Base plate
18" x 18" x 5/16" Base plate
24" x 24" x 5/16" Base plate
18" x 18" x 3/8" Base plate
24" x 24" x 3/8" Base plate
420 x 420 x 5mm Base plate
500 x 500 x 5mm Base plate
500 x 630 x 5mm Base plate
500 x 500 x 8mm Base plate
500 x 630 x 8mm Base plate
500 x 500 x 10mm Base plate
500 x 630 x 10mm Base plate

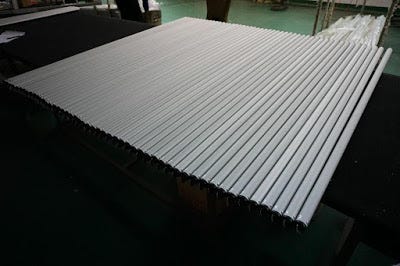

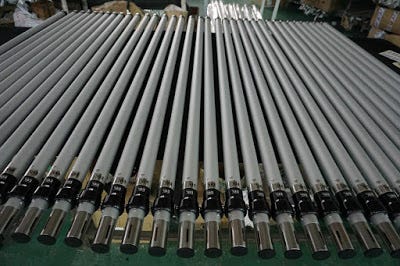

2.Upright(Pillar/Vertical)
We offer one, two, three selections of slip-lock adjustable uprights that range from 3' -24' high (0.9 m — 7.2 m), The end of the upright with 4 slots which can be build at four sides. Also offering application for establishing system side by side. The special upright we owning is the pin was insert into the pipe, stronger and more stable it is.
Upright sizes
3' — 5' Adjustable Upright,Two-Piece pipe & 4" pin & screw
4' — 7' Adjustable Upright,Two-Piece pipe & 4" pin & screw
5' — 8' Adjustable Upright,Two-Piece pipe & 4" pin & screw
6' — 10' Adjustable Upright,Two-Piece pipe & 4" pin & screw
7' — 12' Adjustable Upright,Two-Piece pipe & 4" pin & screw
8' — 14' Adjustable Upright,Two-Piece pipe & 4" pin & screw
9' — 16' Adjustable Upright,Two-Piece pipe & 6" pin & screw
10' — 18' Adjustable Upright,Two-Piece pipe & 6" pin & screw
11' — 20' Adjustable Upright,Two-Piece pipe & 6" pin & screw
12' — 22' Adjustable Upright,Two-Piece pipe & 6" pin & screw
13' — 24' Adjustable Upright,Two-Piece pipe & 6" pin & screw
14' — 26' Adjustable Upright,Two-Piece pipe & 6" pin & screw
5' — 11' Adjustable Upright,Three-Piece pipe & 6" pin & screw
6' — 14' Adjustable Upright,Three-Piece pipe & 6" pin & screw
7' — 17' Adjustable Upright,Three-Piece pipe & 6" pin & screw
8' — 20' Adjustable Upright,Three-Piece pipe & 6" pin & screw
9' — 23' Adjustable Upright,Three-Piece pipe & 6" pin & screw
3.Crossbar(Drape Support/Horizontal)
How far do you need to go horizontally? Room, Hall, Venue or outdoor place. A complete selection of adjustable horizontal drape supports — Crossbar ranging from 2–3' to 9'-16' wide. They are designed to meet any room size and will support the chosen drape.Once the hardware has been established, the drapes are selected for each horizontal section and sleeved on with ease.
Crossbar sizes
2' — 3' Telescopic Crossbars（stops at 3' ）
3' — 5' Telescopic Crossbars（stops at 5'）
4' — 7' Telescopic Crossbars（stops at 6' & 7'）
5' — 8' Telescopic Crossbars（stops at 8'）
6' — 10' Telescopic Crossbars（stops at 8' & 10'）
7' — 12' Telescopic Crossbars（stops at 10' & 12'）
8' — 14' Telescopic Crossbars（stops at 10', 12' & 14'）
9' — 16' Telescopic Crossbars（stops at 12', 14' & 16'）
8' — 10' Telescopic Crossbars（3-Pc Special Drape Support）
4.Fabric Drapery
We are the professional event drapery manufacturer and have been in the area for years.
other product include custom flight case,dance floor,backdrop for event,mobile stage,light truss.
Drapery are available in various color and weight. Chiffon, Ice silk,Banjo,Satin /Sateen,Velvet, Velour, Poly Premier and so on.
