S-Power solid state ground power unit
S400 400Hz/ S28 28V DC Converters
The S-Power is AEME GSE's compact, high-performance solid-state GPU for airport operations. It supplies 400 Hz AC or 28V DC power for various aircraft types. AEME GSE's proprietary LVRTech™ keeps output stable during short voltage dips. It ensures continuous, high-quality power, protects onboard systems, and supports diverse ground operations.
Supports cable reels and towable trailers. Available for mobile, fixed, floor-mounted, or bridge-mounted installation. Ready for virtually any operating scenario.
Reliable power with LVRTech™
LVRTech™ is AEME's independently developed voltage stability solution, designed to maintain reliable aircraft power even under challenging grid conditions. It allows the system to ride through short-term voltage dips and interruptions, significantly enhancing the continuity and reliability of airport ground power supply.
For example, when the load power is below 50 kW and the input voltage drops by 60% (to 160 V), the unit can continue operating for up to 2 seconds, surpassing conventional solutions.

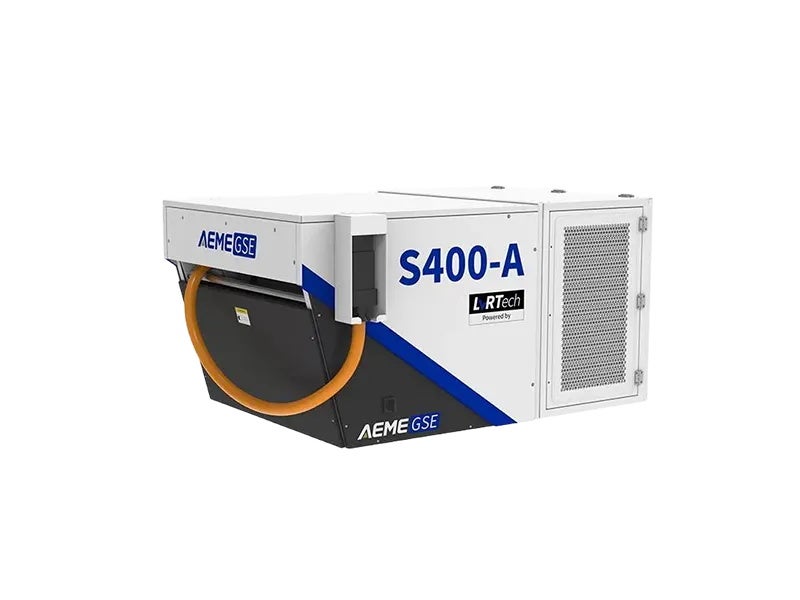

S400-A Bridge-Mounted GPU
The S400-A integrates a solid-state GPU with a 28-meter (optional 25 meters) automatic cable coiling system, delivering reliable 400Hz power. The cable system features built-in limit sensors to prevent over-retraction or extension, and a variable frequency drive ensures smooth operation. This combination enhances the stability and efficiency of bridge-mounted GPU power supply for aircraft.
Specifications
S400 Solid State Ground Power Unit
The S400 is a compact GPU delivering stable 400Hz power across mobile, floor-mounted, or bridge-mounted setups. The modular design allows high scalability for S-Power series expansions, ensuring reliable operation at both remote and contact stands. LVRTech™ maintains voltage stability and enables uninterrupted operation during short-term voltage dips.
Specifications
S400-M Towed Solid-State GPU
The S400-M is a mobile solid-state GPU with a towable trailer, easy to move and deploy in various scenarios. The control box with touchscreen allows simple operation and real-time monitoring of power status. Standard cables include a 10 m 400Hz GPU output and a 15 m input, with longer lengths available on request.
Specifications
S400-V Fixed GPU
The S400-V is a solid-state fixed GPU that delivers stable 400 Hz power directly to aircraft from fixed positions. Engineered for straightforward installation and easy operation, it is ideal for airports, hangars, and other ground support locations. The unit comes with a standard 20 m 400Hz GPU output cable, with custom lengths available upon request.
Specifications
S28 28V DC GPU
The S28 is a compact 28V DC solid-state GPU designed to support the onboard electrical systems of smaller aircraft and helicopters operating on 28V DC power. Despite its small footprint, S28 28V GPU delivers powerful, reliable performance across a wider range of compatible aircraft. Its robust design ensures stable DC power for efficient ground operations.
Specifications
We can also provide kinds of airport ground equipment for sale, if you are interested, please contact us.
