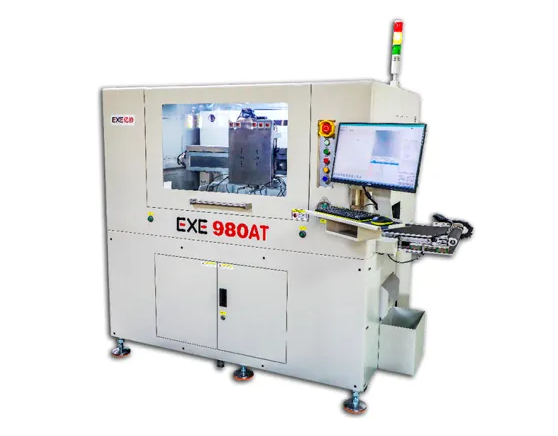

EXE 980AT Online Lower-cutting PCB Depaneling Ma

The EXE 980AT Online Lower-cutting Manual PCB Depaneling Machine is equipped with precision modular independent vacuum suction cup cutting modules and features multi-axis synchronous control via AC servo motors, delivering high efficiency and exceptional stability.

It comes standard with a PCBA product height measurement system to guarantee accurate positioning of vacuum suction and board attachment prior to depaneling.

A standard anti-static belt conveyor enables automatic material infeed and outfeed, supporting rail, belt or bracket-type discharge modes.

Specification Parameters of EXE 980AT Online Lower-cutting PCB Depaneling Machine

Panel separation working range	400mm x 350mm
XYZ drive method	AC servo motors
Number of motion axes	9 axes
Programming method	Color CCD image-based intuitive teaching input
Operating interface	Windows 10 operating system
Suction power	5HP
Automatic Tool Change Cutting Spindle	Max 80000 rpm
X-Y AC Servo Speed	0-1000 mm/sec
Z-axis AC servo speed	0-800mm/sec
X-Y repeatability	±0.01mm
Cutting accuracy	±0.05mm
CCD camera calibration function
Board separation stress value	Below 150με
Tool diameter	0.8-3.0mm
PCB cutting thickness	0.2mm-6.0mm
Main unit&dust collector voltage	220V 1-phase or 3-phase
Power consumption	3.5kVA
Static elimination gun
Vision system	High-resolution digital camera
Drive motor	AC brushless servo motor
Mechanical Pick-and-Place Arm	Anti-static vacuum nozzle
Feeding Method	Rail conveyor
Discharging Method	Belt conveyor or carrier output or rail conveyor
Transfer Method	Vacuum nozzle suction transfer
Flow Direction	Left→Right,Right→Left(optional)
Program Backup	USB Interface
Control Method	Dedicated Controller
Dust Collection Cabinet Dimensions	820mm x 550mm x 1600mm(D×W×H)
Machine Dimensions	2000mm x 1350mm x 1600mm(D×W×H)
Main Unit+Dust Collector Weight	1200 kg
